GIẢI PHÁP IN ẢNH KHÔNG SỬ DỤNG MÁY TÍNH TRÊN MÁY IN DNP

Device & Software Needed

Solution

1.   RX1 printer

2.   Windows Tablet

-Minimum Spec

Ø  Intel Atom 1.83, Quad Core

Ø  1 GB RAM

Ø  32 GB eMMC Storage

Ø  WLan

Ø  USB Port or Micro USB port

3.   USB OnToGo Cable

4.   USB 2.0 Hub

5.   USB Cable

6.   Camera

7.   Window 8 or Window 8.1

8.   HotFolder ver 1.1.0.45

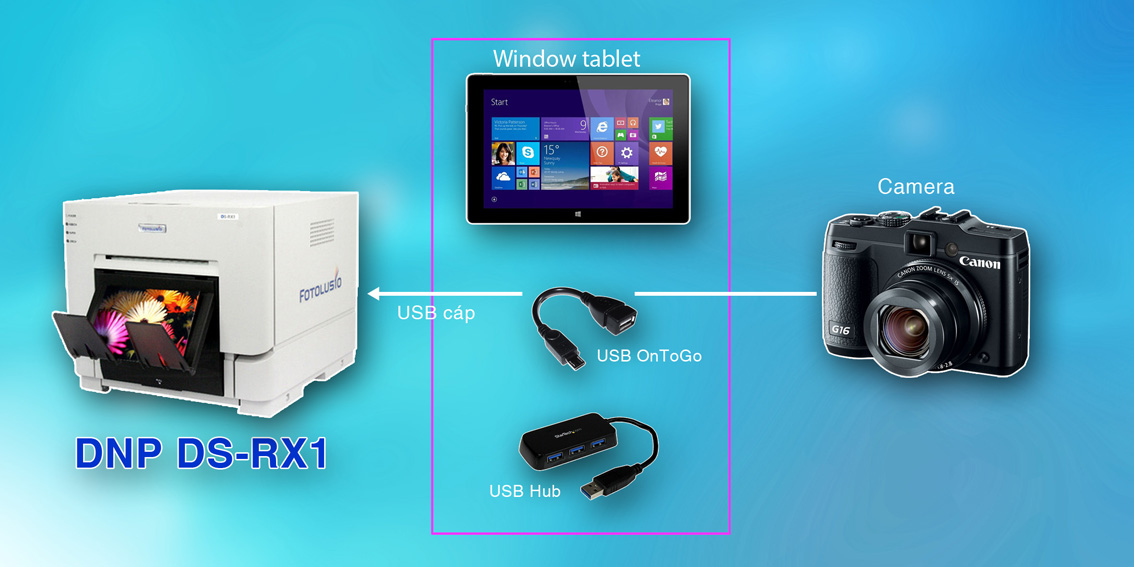

-          Connect USB Hub with USB OnToGo cable.

-          Then connect to Window Tablet

-          Once Camera is connected to Window Tablet, system will prompt user to import photo from camera.

-          Option 1. – Set the import folder as default to HotFolder and the photo will be printed automatically through HotFolder (photo can be printed with customized border).

-          Option 2. – Select the photo from window photo viewer and print as normal.

-          Presetting needed for option 1.

Device

Solution

1.       RX1 printer

2.       Windows Tablet

-Minimum Spec

Ø  Intel Atom 1.83, Quad Core

Ø  1 GB RAM

Ø  32 GB eMMC Storage

Ø  WLan

Ø  USB Port or Micro USB port

3.       USB OnToGo Cable

4.       USB 2.0 Hub

5.       USB Cable

6.       RX1

7.       Wifi Router (optional)

8.       Window 8 or Window 8.1

9.       HotFolder ver 1.1.0.45

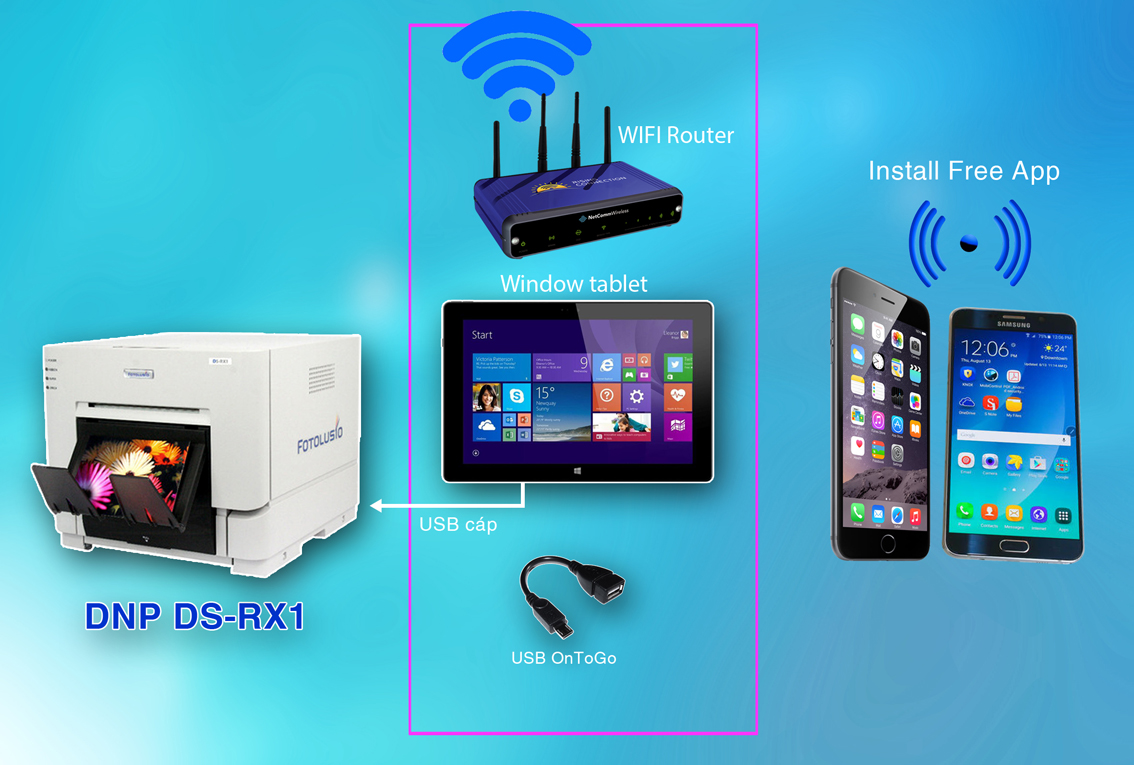

-          Preset Window Tablet as a FTP Server

-          Set HotFolder as default folder for FTP

-          Download free app to mobile device. ( For Example, Android- ES file explore, IOS – FTPToConnect )

-          Mobile Device and Window tablet have to be in same network.

-          Mobile Device need to have tethering or hotspot function (Most of the latest device will have this function) to share network.

-          WIFI router only needed if the mobile device does not have tethering function.

-          Upload the photo from mobile device using free app to windows tablet for automatically print.
